Redefined Industrial Power

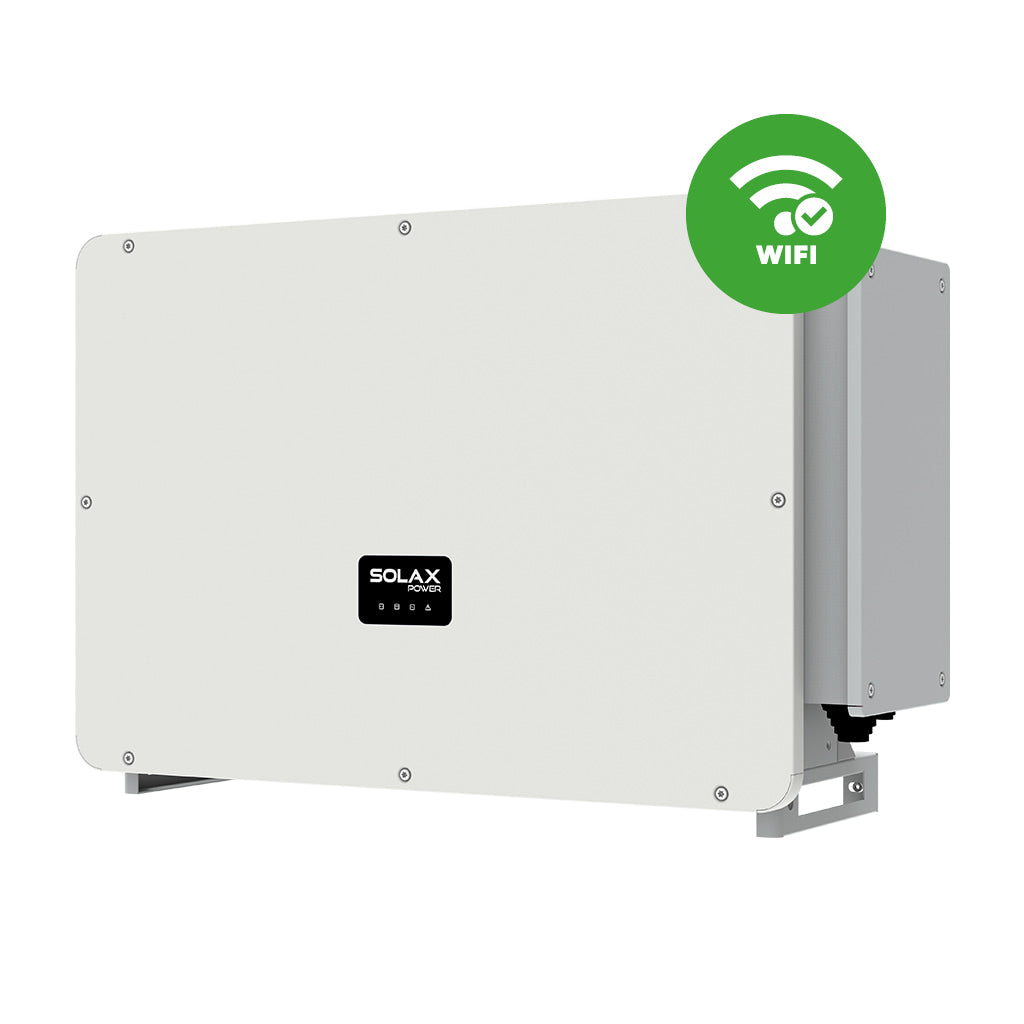

The Solax X3-Forth-100K is the ultimate solution for commercial and industrial photovoltaic installations. With an output power of 100kW and a maximum efficiency of 99%, this inverter ensures maximum performance from your solar plant.

Designed for reliability and ease of installation, it features 9 independent MPPTs for superior design flexibility and optimal shading management.

Highlighted Features

• Maximum Efficiency: Up to 99% efficiency to maximize return on investment.
• Design Flexibility: 9 MPPTs with 2 strings per tracker allow adaptation to any roof configuration.
• Extreme Robustness: IP66 rating for outdoor installation and operation in adverse conditions (-25°C to 60°C).
• Advanced Safety: Comprehensive protections including Type II SPD (DC/AC) and string monitoring.
• Intelligent: 24/7 remote monitoring, I-V curve diagnostics, and support for reactive power control.

Technical Specifications

Rated Output Power	100 kW
Max. PV Power	150 kWp
MPPTs / Strings	9 / 18 (2 per MPPT)
MPPT Voltage Range	180V - 1000V
Max. Input Voltage	1100 V
Max. Input Current	32A per MPPT
Maximum Efficiency	99%
Dimensions	985 × 660 × 327.5 mm
Weight	83 kg
Protection Rating	IP66

Connectivity and Management

• Communication: RS485, DRM (WiFi included).
• Smart Cooling.
• Compatible with Solax Cloud for monitoring.
