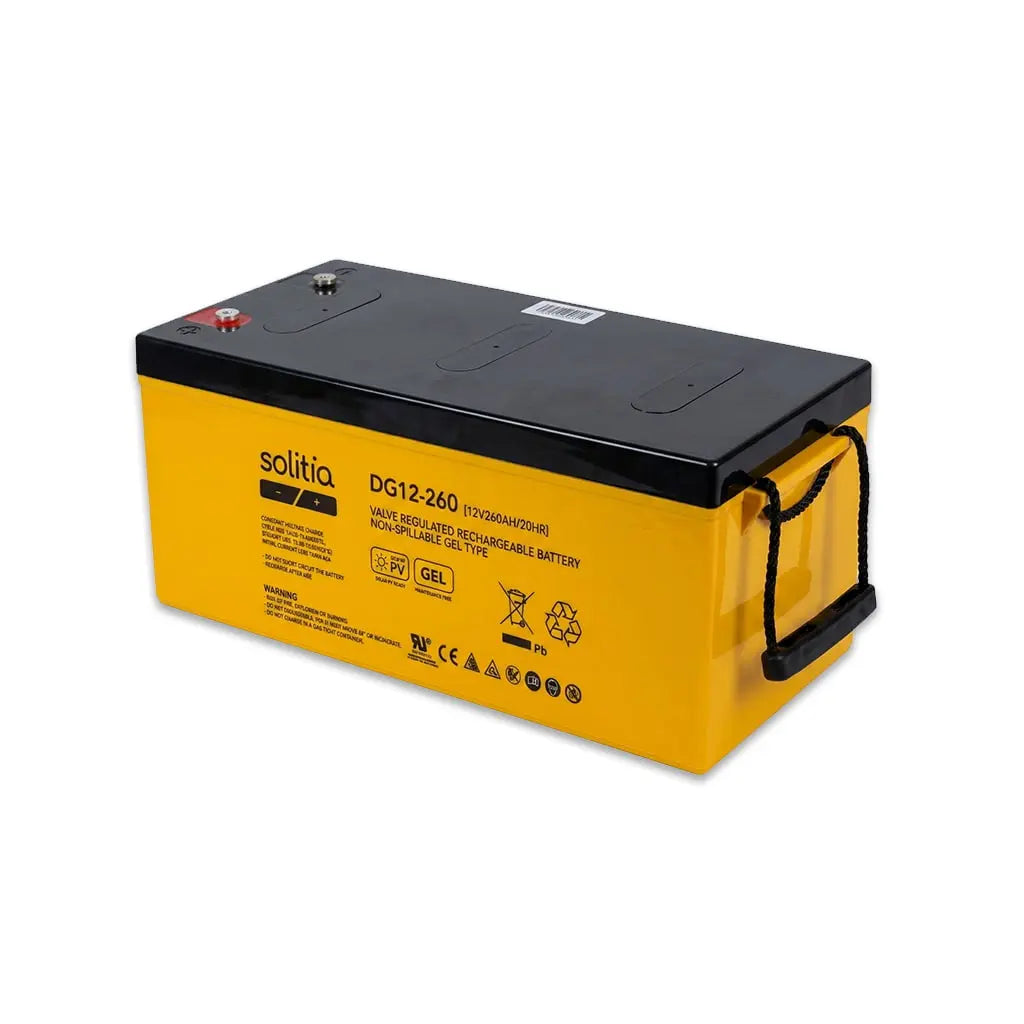

Solitia DG12-260 12V 260Ah C20 GEL

€373,55 EUR
```html

Solitia DG12-260 Battery 12V 260Ah C20 GEL

Pure GEL monoblock deep cycle battery for demanding cyclic discharges

Battery from the DG series (deep cycle GEL), with a 15-year lifespan in float service and double the cycle life of a standard lead-acid battery. Its reinforced grids, high-purity lead, and patented GEL electrolyte allow it to recover excellently from deep discharges in extreme environments.

SKU

BAT2952

C20 Capacity

260 Ah

Nominal Voltage

12 V

Design Life

15 years

Detailed Technical Specifications

  • Cells per unit: 6
  • Voltage per unit: 12 V
  • Rated capacity: 260 Ah at C20 discharge rate (20 hours) to 1.75 V per cell at 25°C
  • Reference capacity: C3 171.9 Ah / C5 195.0 Ah / C10 229.0 Ah / C20 260.0 Ah
  • Internal resistance: ≤ 6.5 mΩ (battery at full charge, 25°C)
  • Maximum discharge current: 2600 A (5 seconds)
  • Maximum charge current: 52.0 A
  • Float charge voltage: 13.38 V – 13.5 V at 25°C (temperature compensation: -3 mV/°C/cell)
  • Cyclic use voltage: 14.20 V – 14.40 V at 25°C (temperature compensation: -4 mV/°C/cell)
  • Length: 521 ± 2 mm
  • Width: 268 ± 2 mm
  • Height: 220 ± 2 mm
  • Total height: 220 ± 2 mm
  • Weight: approximately 72.0 kg (tolerance ± 5 %)
  • Terminal: F14 (M8) by default, optional L6
  • Terminal tightening torque: M8: 10-12 N·m · M6: 8-10 N·m · M5: 6-7 N·m
  • Container material: A.B.S. UL94-HB, UL94-V0 optional
  • Design life: 15 years in float service
  • Discharge temperature: -40°C to 60°C
  • Charge temperature: 0°C to 50°C
  • Storage temperature: -40°C to 60°C
  • Normal operating temperature range: 25°C ± 5°C
  • Self-discharge: less than 2 % monthly at 25°C; can be stored for up to 6 months at 25°C before recharging

Performance Data and Efficiency Curves

Operational Limits and Capacity

  • Reference capacity by discharge rate: C3 171.9 Ah, C5 195.0 Ah, C10 229.0 Ah, C20 260.0 Ah
  • Maximum discharge current in 5-second peaks: 2600 A
  • Self-discharge less than 2 % monthly at 25°C
  • C20 capacity reaches 95 % after the first charge/discharge cycle and 100 % after the third cycle

Detailed Applications and Use Cases

chevron_right Isolated Solar and Wind Systems
  • Excellent recovery after deep discharges thanks to the patented GEL electrolyte
  • Double cycle life compared to a standard lead-acid battery
chevron_right Nautical
  • Reinforced grids and high-purity lead for demanding onboard environments
  • Good performance against frequent cyclic discharges
UPS / Deep Discharge SAI
  • Designed for frequent cyclic discharges in demanding backup applications
  • 15 years of design life in float service

Certifications and Full Regulatory Compliance

Manufacturing Management Systems

  • check ISO 9001 - Quality Management
  • check ISO 14001 - Environmental Management
  • check ISO 45001 - Occupational Health and Safety Management

Professional Technical Service Techno Sun

Specialized technical support for professional installers with advice on sizing, commissioning, and troubleshooting technical issues.

PERMANENT STOCK SHIPPING 24-48H OFFICIAL SOLITIA WARRANTY

Solitia DG12-260 Battery 12V 260Ah C20 GEL

Reference: BAT2952 | Monoblock GEL Deep Cycle Battery 12V 260Ah

The ultimate solution for isolated solar/wind systems, nautical applications, and deep discharge UPS in applications demanding maximum reliability and energy efficiency.

✓ OFFICIAL SOLITIA WARRANTY ✓ AUTHORIZED DISTRIBUTOR
```
