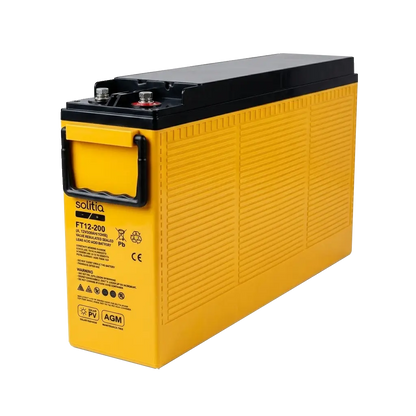

Solitia FT12-200A 12V 200Ah C10 VRLA

€255,92 EUR
```html

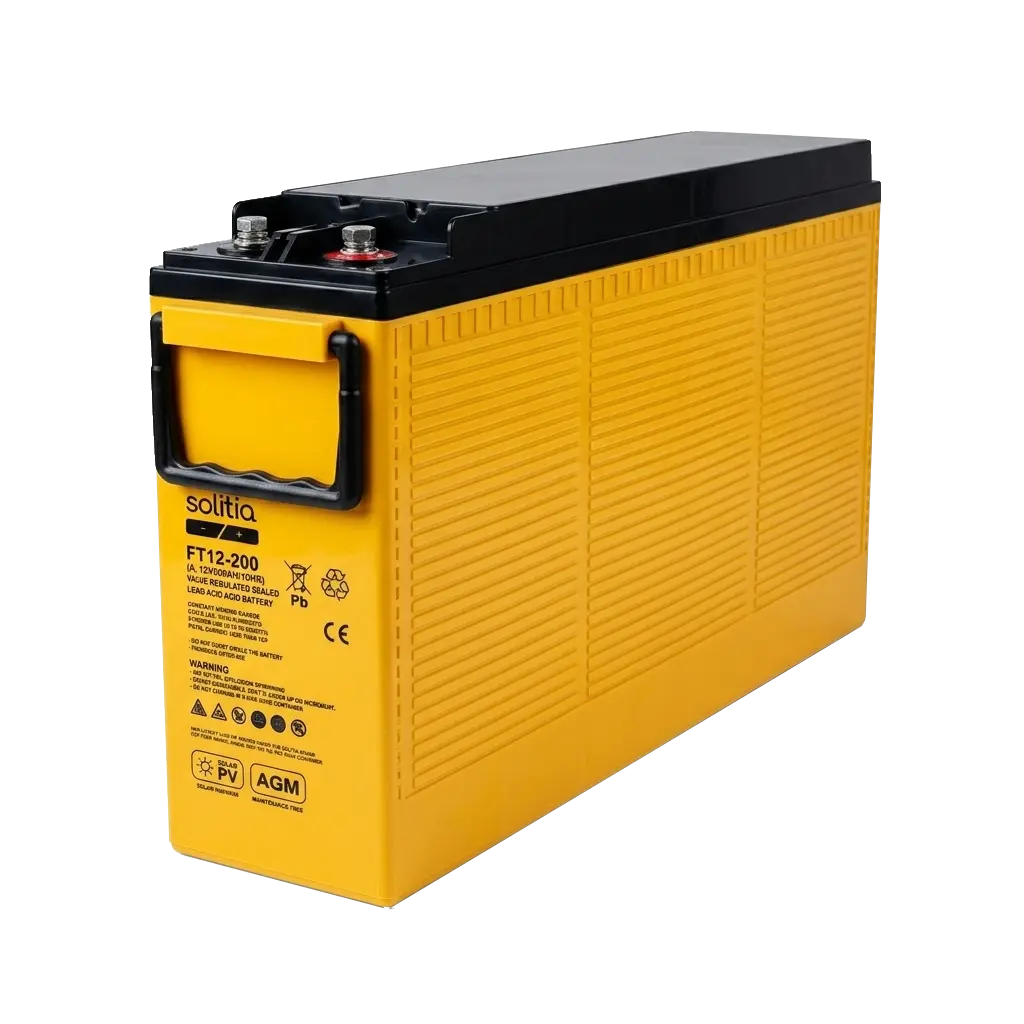

Solitia FT12-200A Battery 12V 200Ah C10 VRLA AGM

Front terminal VRLA AGM monoblock battery for telecommunications and UPS

Valve-regulated lead-acid (VRLA) battery with AGM technology, designed for a service life of 12 years in float service. Its AGM separator and centralized ventilation system allow installation in any position without losing reliability, and its compact dimensions fit into standard 19 and 23-inch racks.

SKU

BAT2951

C10 Capacity

200 Ah

Nominal Voltage

12 V

Design Life

12 years

Detailed Technical Specifications

  • Cells per unit: 6
  • Voltage per unit: 12 V
  • Rated capacity: 200 Ah at C10 discharge rate (10 hours) to 1.80 V per cell at 25°C
  • Reference capacity: C3 150.0 Ah / C5 170.0 Ah / C10 200.0 Ah / C20 212.0 Ah
  • Internal resistance: ≤ 4.0 mΩ (battery at full charge, 25°C)
  • Maximum discharge current: 2000 A (5 seconds)
  • Maximum charge current: 60.0 A
  • Float charge voltage: 13.5 V – 13.8 V at 25°C (temperature compensation: -3 mV/°C/cell)
  • Cyclic use voltage: 14.6 V – 14.8 V at 25°C (temperature compensation: -4 mV/°C/cell)
  • Length: 560 ± 2 mm
  • Width: 125 ± 2 mm
  • Height: 316 ± 2 mm
  • Total height: 316 ± 2 mm
  • Weight: approximately 54.0 kg (tolerance ± 5.0 %)
  • Terminal: F14 (M8) by default
  • Terminal torque: M8: 10-12 N·m · M6: 8-10 N·m · M5: 6-7 N·m
  • Container material: A.B.S. UL94-HB, UL94-V0 optional
  • Design life: 12 years in float service
  • Discharge temperature: -20°C to 60°C
  • Charge temperature: 0°C to 50°C
  • Storage temperature: -20°C to 60°C
  • Normal operating temperature range: 25°C ± 5°C
  • Self-discharge: less than 3 % monthly at 25°C; can be stored for up to 6 months at 25°C before recharging

Performance Data and Efficiency Curves

Operational Limits and Capacity

  • Reference capacity by discharge rate: C3 150.0 Ah, C5 170.0 Ah, C10 200.0 Ah, C20 212.0 Ah
  • Maximum discharge current in 5-second peaks: 2000 A
  • Self-discharge less than 3 % monthly at 25°C
  • C10 capacity reaches 95 % after the first charge/discharge cycle and 100 % after the third cycle

Detailed Applications and Use Cases

chevron_right Telecommunications
  • Dimensions designed for installation in standard 19 and 23-inch racks
  • Front terminal F14 (M8) that facilitates wiring in communication racks
chevron_right EPS and Emergency Power Supply
  • Reliable backup for uninterruptible power supply (UPS) systems
  • High peak discharge current (2000 A / 5 seconds) for starts and load transients
chevron_right Installation in Any Position
  • AGM separator and centralized ventilation system that allow different mounting orientations
  • Reliability maintained regardless of installation position

Certifications and Full Regulatory Compliance

Manufacturing Management Systems

  • check ISO 9001 - Quality Management
  • check ISO 14001 - Environmental Management
  • check ISO 45001 - Occupational Health and Safety Management

Professional Technical Service Techno Sun

Specialized technical support for professional installers with advice on sizing, commissioning, and troubleshooting.

PERMANENT STOCK SHIPPING 24-48H OFFICIAL SOLITIA WARRANTY

Solitia FT12-200A Battery 12V 200Ah C10 VRLA AGM

Reference: BAT2951 | VRLA AGM Monoblock Battery 12V 200Ah

The ultimate solution for telecommunications and emergency power supply in applications that demand maximum reliability and energy efficiency.

✓ OFFICIAL SOLITIA WARRANTY ✓ AUTHORIZED DISTRIBUTOR
```
