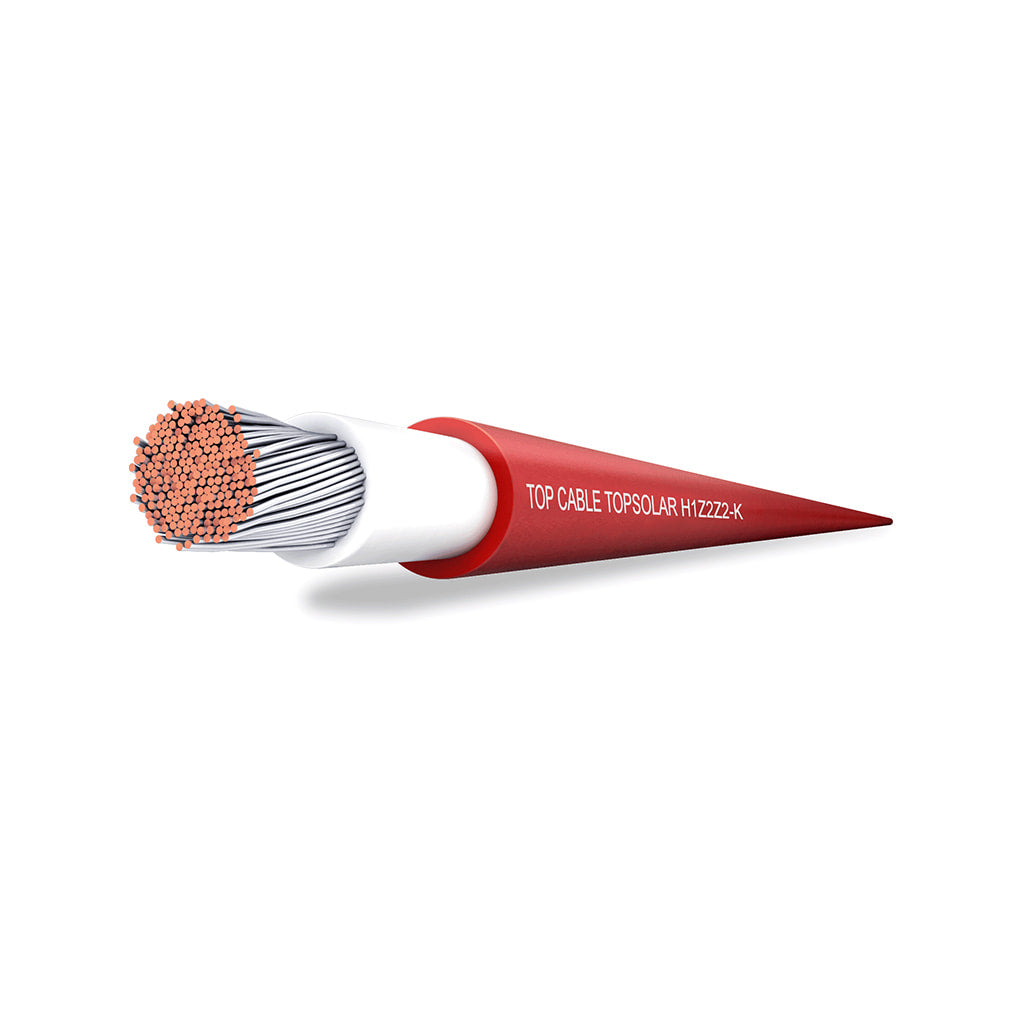

Top Cable TOPSOLAR PV H1Z2Z2-K 1x6mm² 1500V Red (500m)
High-performance solar cable for professional photovoltaic installations
General Description
The Top Cable TOPSOLAR PV H1Z2Z2-K is a high-quality solar cable, specially designed for photovoltaic installations. With a conductor cross-section of 6mm² and a rated voltage of 1500V DC, it is ideal for string wiring in modern solar plants. The 500m reel offers optimal profitability for commercial and industrial installations.
Highlighted Features
- High voltage resistance: 1500V DC rated voltage for modern PV systems
- Thermal resistance: Conductor temperature up to 120°C, short circuit up to 250°C
- Weather resistant: UV resistant, ozone resistant, and halogen-free
- Flexible: Easy installation even at low temperatures down to -40°C
- Fire protection: CPR Class Cca-s1b,d2,a1
Technical Specifications
Electrical Data
Thermal Data and Standards
Recommended Applications
Commercial PV Plants
Ideal solution for string wiring in solar commercial installations with a system voltage of 1500V.
Solar Parks
Reliable DC connection between module strings and inverters in large ground-mounted installations.
Industrial Installations
High fire protection class Cca for use in industrial environments with strict safety requirements.
Documentation and Support
Download the complete technical datasheets in the downloads section. Manufacturer: Top Cable.
